Product Description
Brief Introdction:

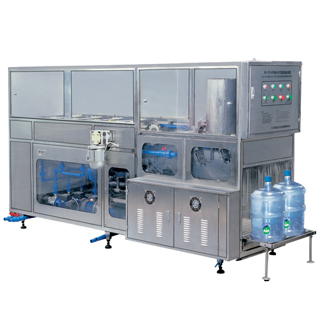

B5G series 3 in 1 monobloc 3 gallon 5 gallon filling machine is specially designed to fill the purified water and the distilled water, mineral water and other bacteria free liquids with 3 gallon - 5 gallon bottles. As the equipment integrates the processes of bottle washing, filling, cap dropping, cap pressing and finished product delivering, it is the ideal choice of water plant.
For operations, the equipment can be connected with the following machines: the bottle cap pre-heater, bottle de-capper, empty bottle leakage checker, bottle outside washer, bottle inside washer, bottle auto loader, thermal bottle neck sealer, lamp inspection panel. bottle lifter, bottle rack stacker, and other addtional equipments. It features with advanced technology & working principle, high level of automation, easy operation and conveneint maintenance.
Model: B5G-200
Specs:
- Input watt: 3.5kw
- Bottle spec.: 270x490x56(diameter) mm
- 230x460x56(diameter) mm
- Bottle volume: 5 or 3 gallons
- Cap spec.: 58(diameter)x40mm
- Bottle rinsing capacity: 200 bottles/hour
- Filling capacity: 200 bottles/hour
- Dimensions: 800x 500x2,010mm
- G.W.: 320kg
- N.W.: 290kg
