5 Gallon Blow Molding Machine
Product Details:
X
Product Description
PET 5 Gallon Blow Molder

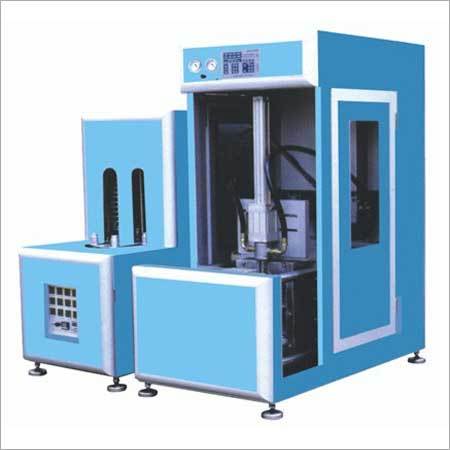

SL-5G Semiautomatic bottle blow molding machine( For 3-5gallon )
SL-5G blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.
Features
SL-5G Semiautomatic bottle blow molding machine( For 3-5gallon )
SL-5G blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.
Features
- Perfect function with economic investment.
- Small size and compact construction with no space waste.
- Easy to operate and maintain ,operation by one person .
- Saving power and uneasy to worn out ,adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
- Input watt: 11kw
- Bottle spec.: 270x490x56(diameter) mm, 230x460x56(diameter) mm
- Bottle volume: 5 or 3 gallons
- Capacity: 90 bottles/hour
- Dimensions: 12,000x1,100x2,100mm
- Blowing machine: 2,300x840x2,150mm
- Preform heater: 2,800x770x1,750 mm
- G.W.: 1,700kg
- N.W.: 1,600kg
