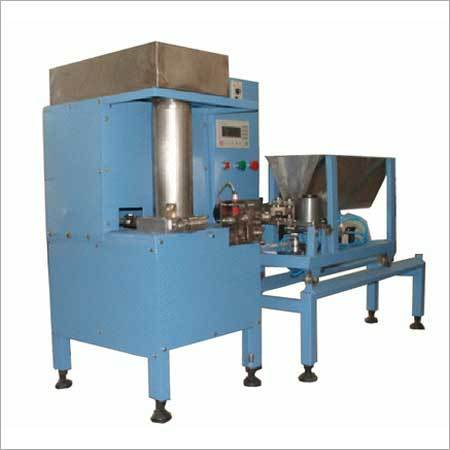

Agarbatti Sticks Making Machine

Product Description

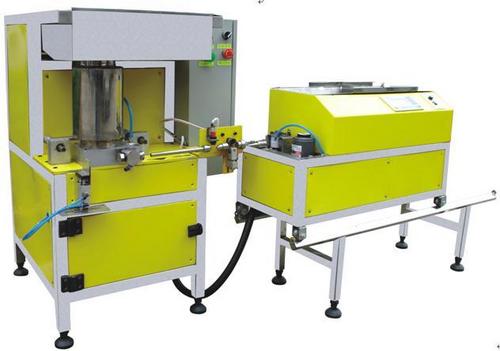

Agarbatti Incense Sticks Making Machine

• The agarbatti making machine, incense sticks making machine, incense maker is with PLC and text double control system to achieve full automatic operation for the step of stick tidying, stick dosing and incense making.

• User can adjust incense making speed and capacity by the controlled of advance frequency converter and adjustable speed motor.

• Apply advance stick dosing technology of stepping motor and pneumatic rim clamp, in order to reduce stick jamming and break.

• Apply multiway water-cooling system to improve incense quality and utilization rate of raw materials and reduce cost of incense production.

• Good looking appearance, low energy consumption and noise.

Specifications:

• Model: JX-2

• Input watt: 1.6kw

• Incense specs: Φ3-5mm incense diameter

• Capacity: 150 pcs/min

• Dimensions:

• Stick dosing machine:430x1,200x830mm

• Incense making machine: 730x730x1,050mm

• N.W.: 180kg

Technical Specification

• Input watt: 1.5kw

• Incense specs: 3-5mm incense diameter

• Capacity: 120 pcs/min

• Dimensions

  • Stick dosing machine: 370x950x730mm

  • Incense making machine: 610x730x1,060mm

• N.W.: 130kg
