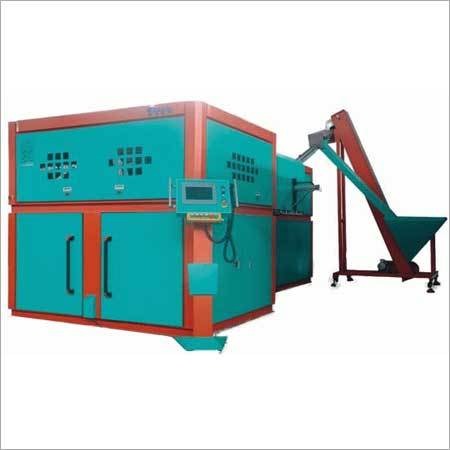

PET Bottle Molder
Product Details:
X
Product Description
PET 50ml 7000ml Bottle Molder
SL series PET blow molding machine blow molder can reaches MAX 6000BPH for 500ML bottle. Its baking tunnel is separated from the blow station so that time for mold opening is shortened with a result of speedy blowing and high output, damage to machine is lessened so as to keep reliable performance and prolong service life, as well as machine runs more smoothly and steadily.
SL seris PET automatic stretch blow molding machine is equipped with patented preform loading system, which consists of two manipulators: rectilinear manipulator and overturning manipulator. The rectilinear manipulator moves preform with neck up to the preform holder, after heating, the overturning manipulator grips heated preform and overturn 180 put preform to blow station with neck down. After stretching and blowing, the bottle is taken off by overturning manipulator. The specially designed preform loading & bottle discharging system avoid possible damage to preform & bottle during transportation.
SL series PET automatic stretch blow molding machine is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages of labor saving and no pollution. SL blowing machineries consists of three main parts: preform loader, preform heater & blowing machine.
Technical Specification
SL series PET blow molding machine blow molder can reaches MAX 6000BPH for 500ML bottle. Its baking tunnel is separated from the blow station so that time for mold opening is shortened with a result of speedy blowing and high output, damage to machine is lessened so as to keep reliable performance and prolong service life, as well as machine runs more smoothly and steadily.
SL seris PET automatic stretch blow molding machine is equipped with patented preform loading system, which consists of two manipulators: rectilinear manipulator and overturning manipulator. The rectilinear manipulator moves preform with neck up to the preform holder, after heating, the overturning manipulator grips heated preform and overturn 180 put preform to blow station with neck down. After stretching and blowing, the bottle is taken off by overturning manipulator. The specially designed preform loading & bottle discharging system avoid possible damage to preform & bottle during transportation.
SL series PET automatic stretch blow molding machine is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages of labor saving and no pollution. SL blowing machineries consists of three main parts: preform loader, preform heater & blowing machine.
Technical Specification
- Input watt: 53kw
- Bottle spec.: diameter: 50~100mm, height:150~320mm
- Bottle volume: 330 or 1500ml
- Capacity: 6000 bottles/hour
- Dimensions
- Blowing machine: 5,000x2,800x2,200mm
- Preform loader: 2,300x1500x2480mm
- G.W.: 5,600kg
- N.W.: 5,150kg
